Color is being blocked from areas of my animation

Please use this part to report bugs & errors, ask questions & "How to..."
Post Reply
BruceM
Posts: 281
Joined: 17 Jan 2014, 15:39

Color is being blocked from areas of my animation

Post by BruceM »

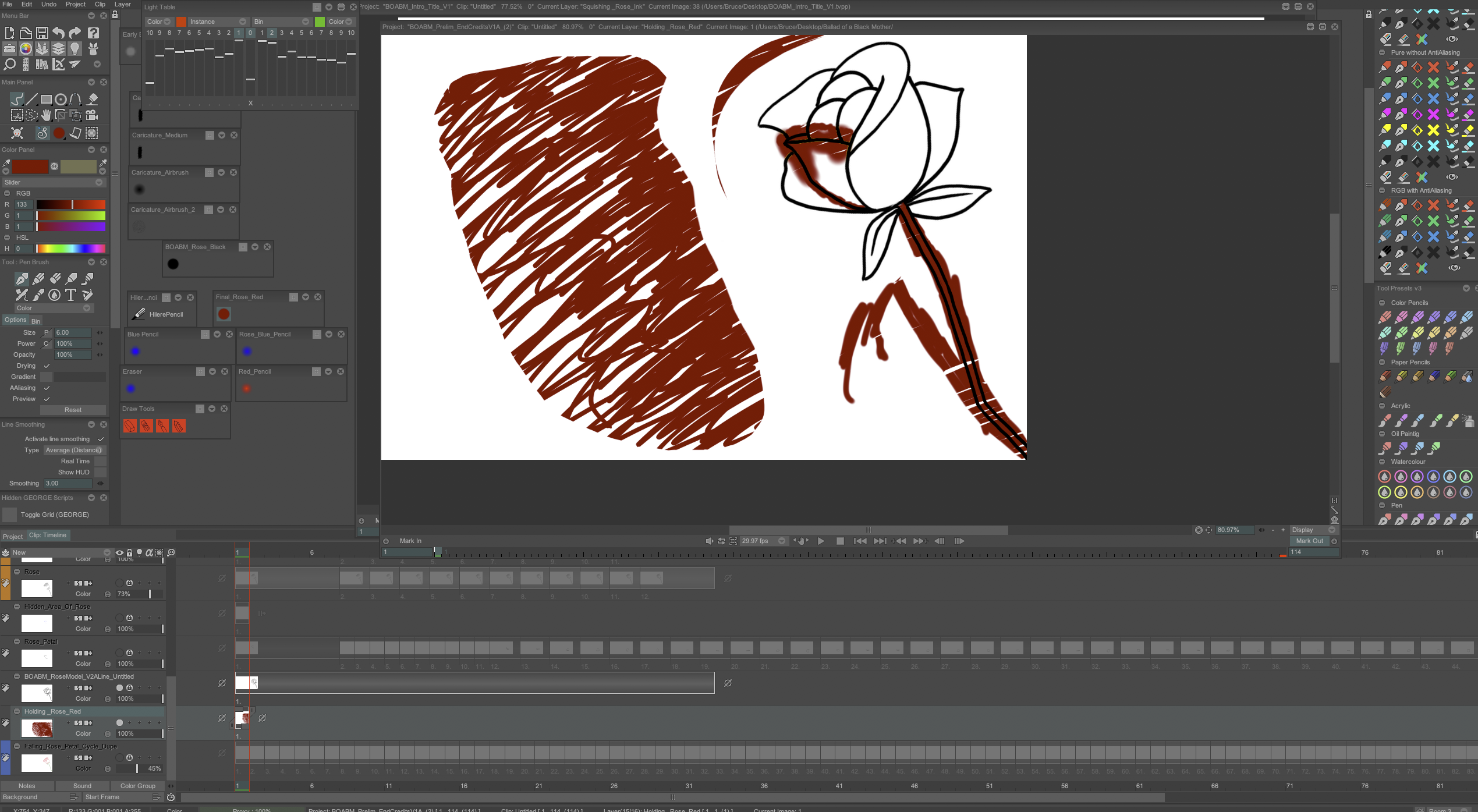

I'm having another attack of this problem, but it doesn't appear to be related to having "papers" turned on.. I'm attempting to color an animated segment and the color isn't taking to some areas. When I scribble in with a color, this is what I'm getting (see attachment).

Does anyone have a thought on what is causing this?
Attachments
Screen Shot 2024-09-22 at 5.50.26 PM.png
kelanhordos
Posts: 92
Joined: 06 Aug 2019, 01:09
Contact:

Re: Color is being blocked from areas of my animation

Post by kelanhordos »

Hmm, looks like you may have white on your lineart layer? If you press shift+b (default shortcut for Toggle Background mode) it will go through transparent > white > black for your alpha level and that will show if you have any white on the lineart layer(turn that layer on/off after. It is also located on the bottom left of the timeline box, where it says "background," a dropdown menu will give you the option to set it to each of the fore mentioned options.
PC: Windows 10/64 Pro - TUF Gaming H470-PRO, i9-10900F@ 2.8 GHz - 32Gb RAM
Tvpaint 12.0.1 Pro
Wacom Cintiq 16 Driver: 6.4.7-3
User avatar
slowtiger
Posts: 2947
Joined: 08 May 2008, 21:10
Location: berlin, germany
Contact:

Re: Color is being blocked from areas of my animation

Post by slowtiger »

Happens to me all the time. Mostly it's some kind of masking turned on:
- preserve alpha on the actual layer
- mask active on another layer
The last icon in the main panel, bottom row right, indicates wether you have any mask or selection active, and if you click it, de-activates it.

Or, as already mentioned, I've painted something white unintentionally on a higher layer which is just blocking the sight.
TVP 10.0.18 and 11.0 MacPro Quadcore 3GHz 16GB OS 10.6.8 Quicktime 7.6.6
TVP 11.0 and 11.7 MacPro 12core 3GHz 32GB OS 10.11 Quicktime 10.7.3
TVP 11.7 Mac Mini M2pro 32GB OS 13.5
