Import/Export XDTS Panel

Post by Hironori Takagi »

I received request on the following topics in the forum.
viewtopic.php?f=10&t=4161

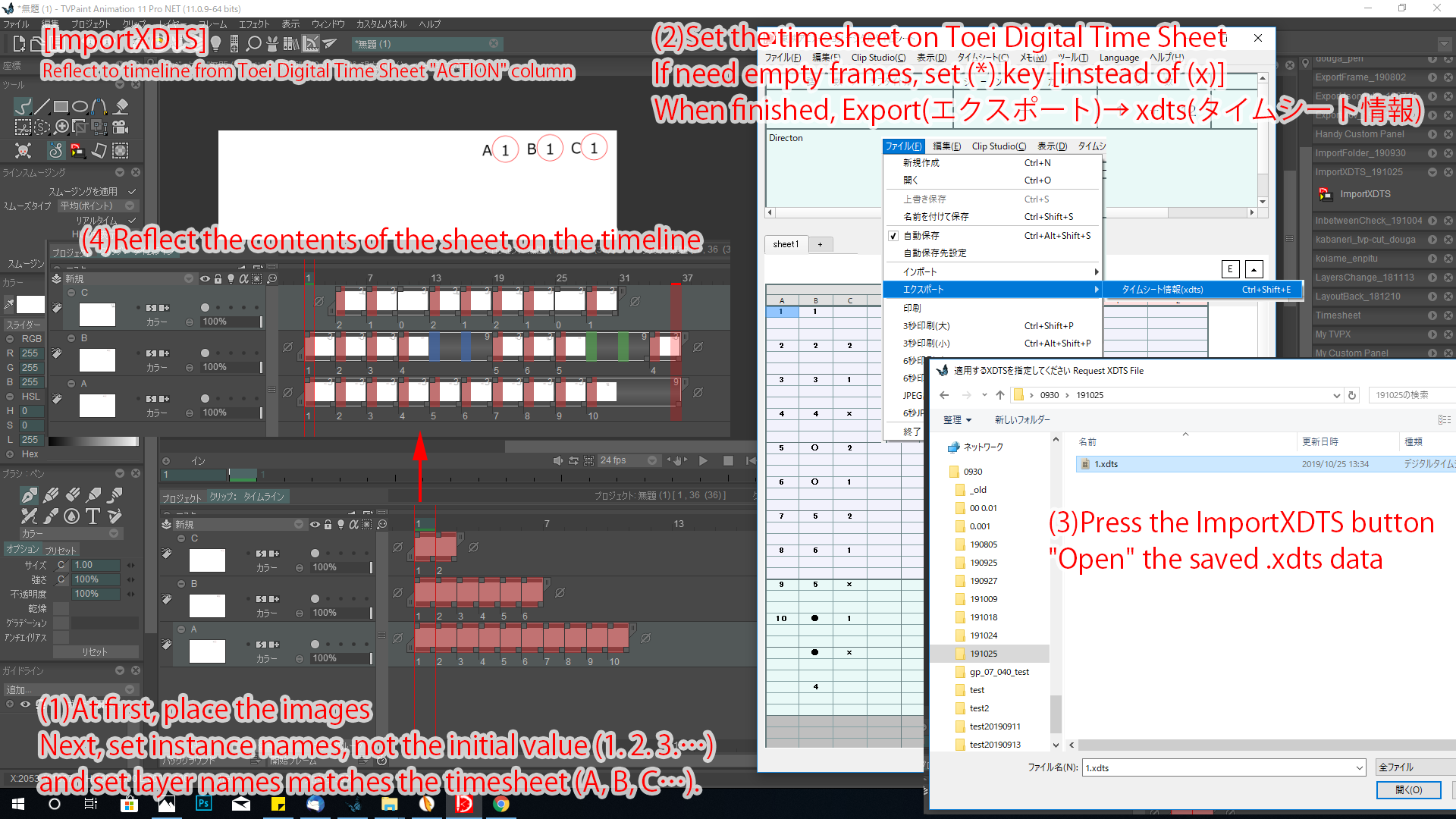

The custom panel of "Import/Export XDTS", which has been talked about, is released here.

[20/06/17 added]
This panels reads/writes JSON data (.xdts) that transfers timeline data to Toei Digital Animation Sheet (Windows Application)
developed by Toei Animation and published by Celsys.

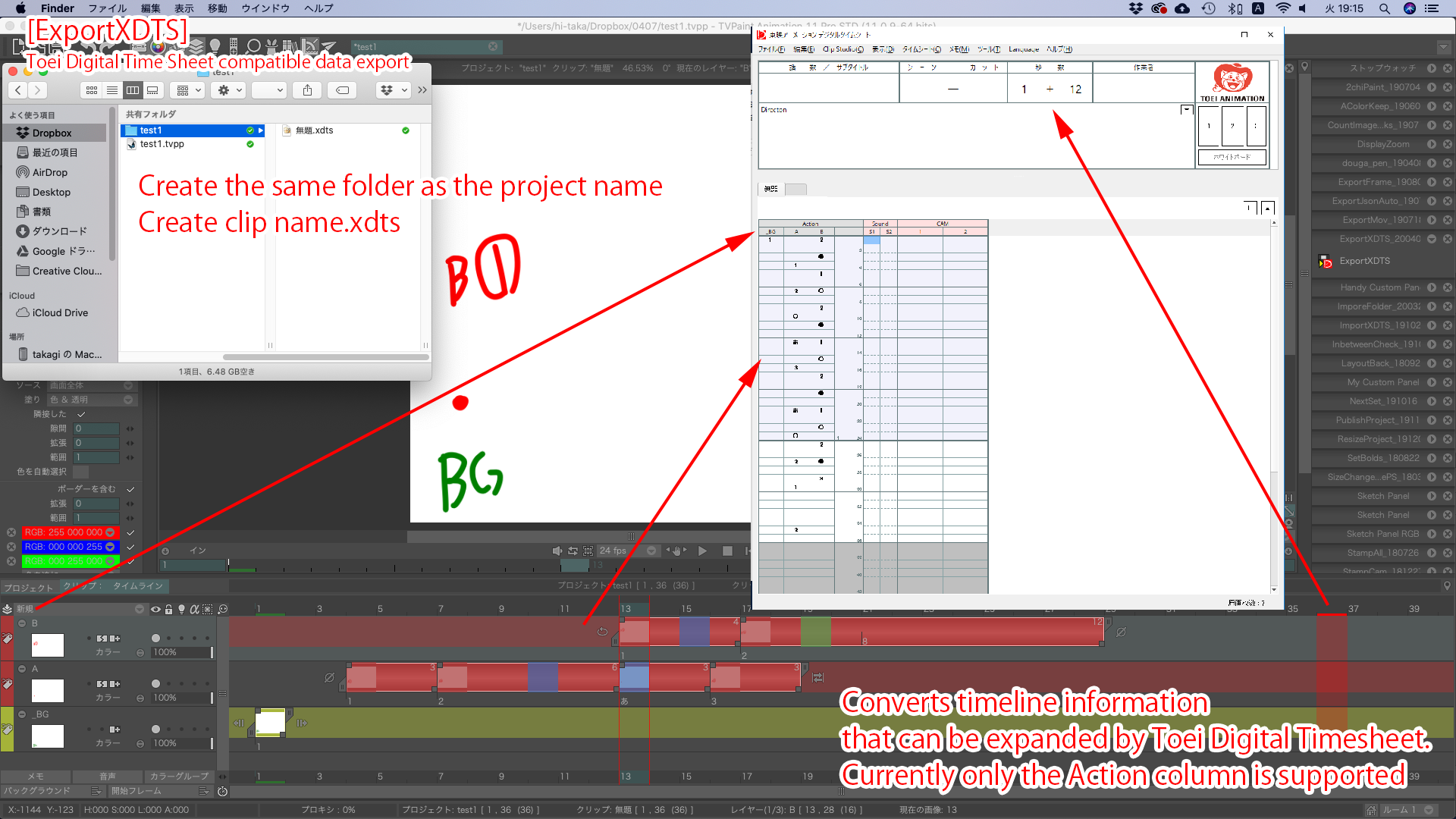

ExportXDTS.tvpx updated at 20/06/16 on Japanese Forum.
I set the latest 200608 edition.
Attachments
ExportXDTS_200608.tvpx
(72.5 KiB) Downloaded 437 times
ImportXDTS_200415.tvpx
(73.5 KiB) Downloaded 419 times
TVPaint 11.7.2(Nov 14 2023), Windows11 Pro, HP Spectre x360 Convertible 14-ea0xxx / TVPaint 11.7.1(Dec 22 2022) Mac OS 11.6, Apple MacBookPro M1 2020
User avatar
TVPUSER
Posts: 99
Joined: 30 Jan 2021, 02:29

Re: Import/Export XDTS Panel

Post by TVPUSER »

Getting this functionality officially supported would be really beneficial. I use this all the time when I work with other animators who use Clip studio.
It also allows me to easily input the timing of an image sequence into after effects so I can easily work with other artists.

Even if it doesn't get officially supported I hope the script can be maintained in case newer versions of TVPaint break functionality
TVPaint 11.7.3, 12.0.1 Pro 64, Windows 10 H
i7-8700k, 48GB, RTX 2080 8G Desktop, Cintiq Pro 24 (3840x2160)
Ryzen 9 5900HS,16GB, RTX 3060 6G Laptop, Wacom ONE 13 Touch (1920x1080)
