Jumping line issue

Post by Kramme »

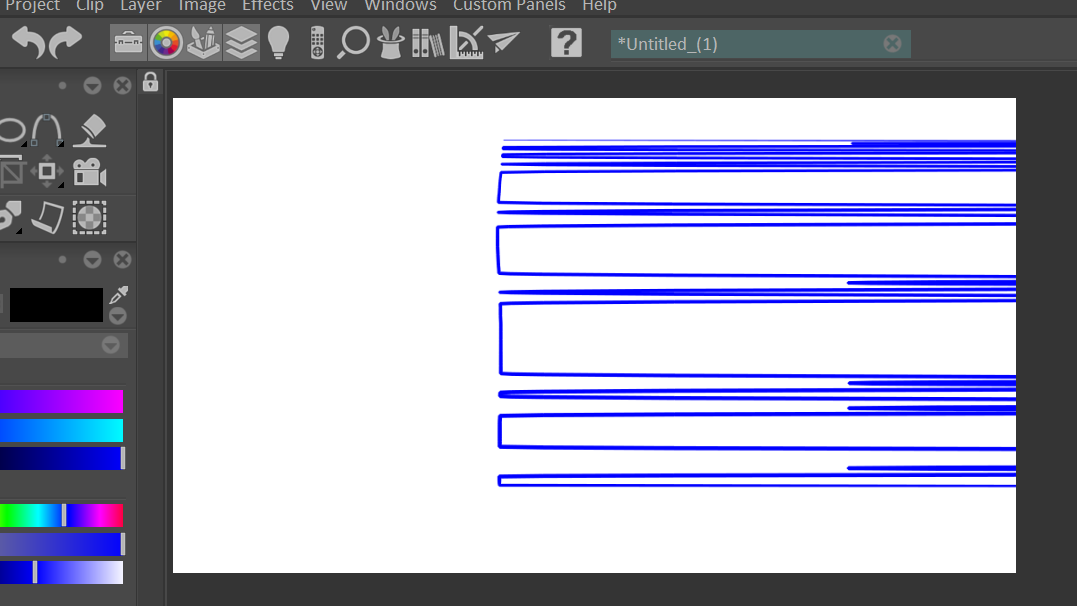

I recently got myself a new laptop and was looking forward to running TV Paint on it. Unfortunately, when I installed it and rehosted my license I ran into this issue where the line I draw jumps to the side like a seismograph. It only seems to happen with TV Paint, not other softwares, and only when using my Cintiq. I remember seeing someone with a similar issue on here (years ago) but can't find the topic again, so I'm hoping someone is able to help me solve this.

Screenshot 2024-10-13 144710.png
Screenshot 2024-10-13 144710.png (69.97 KiB) Viewed 935 times

I run TV Paint 11.7.4 on Windows 11 and use a Wacom Cintiq Pro 24 P.
User avatar
Dean
Site Admin
Posts: 1034
Joined: 28 May 2018, 09:07

Re: Jumping line issue

Post by Dean »

Hello Kramme, in the General tab of your TVP11's Preferences panel, is the drawing mode set to Wintab with the "Subpixel" option enabled?
Probably a vampire
User avatar
Hironori Takagi
Posts: 313
Joined: 14 May 2018, 10:15
Location: Tokyo, Japan
Contact:

Re: Jumping line issue

Post by Hironori Takagi »

The official answer from TVPaint is to "turn on the subpixel option," but this causes problems with the right-click detection (it doesn't work unless you get the pen very close).

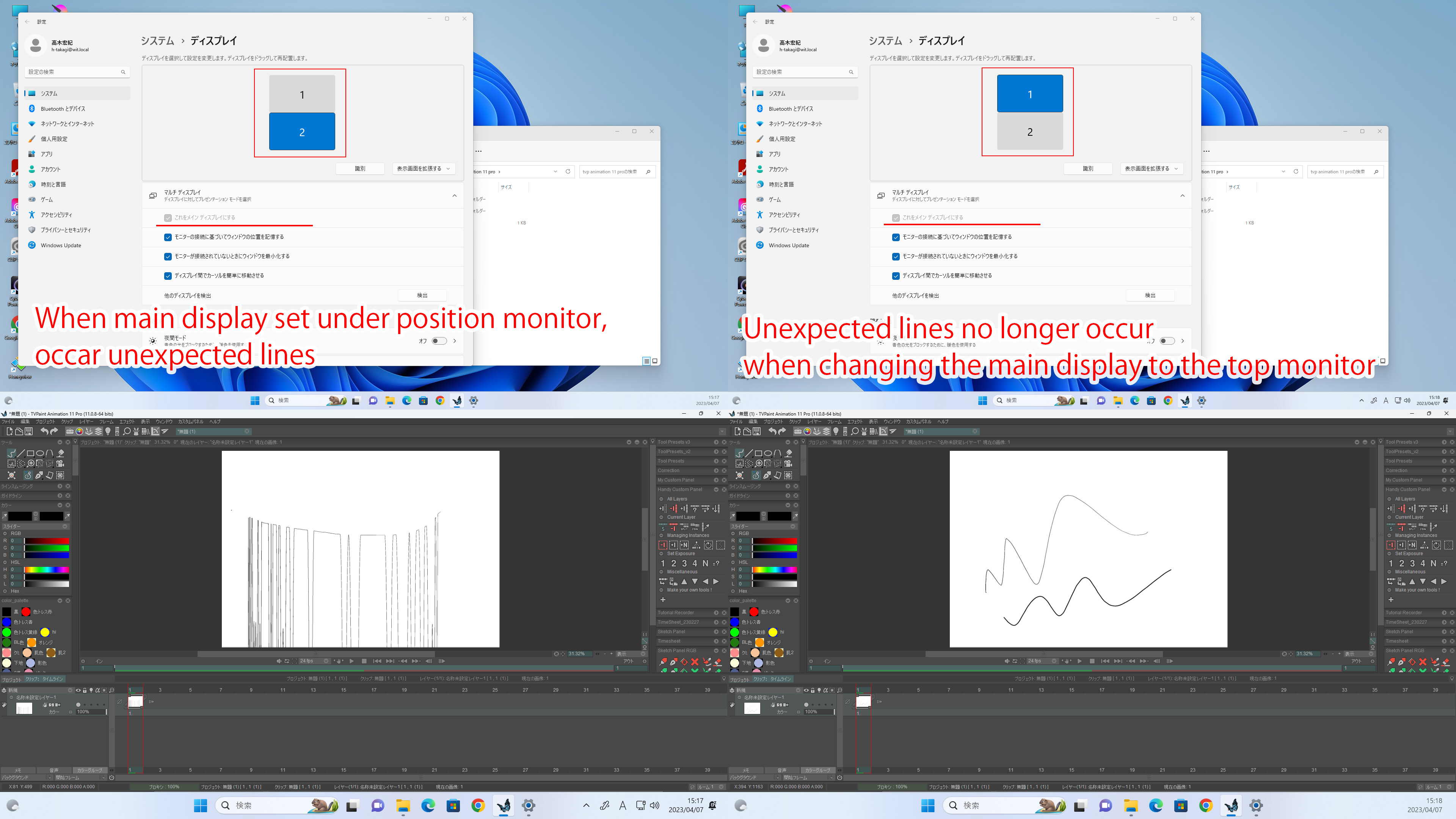

The solution we found in our studio was to "set the top-left monitor as the main display." I have attached it for your reference.
TVPaint 11.7.2(Nov 14 2023), Windows11 Pro, HP Spectre x360 Convertible 14-ea0xxx / TVPaint 11.7.1(Dec 22 2022) Mac OS 11.6, Apple MacBookPro M1 2020
Kramme
Posts: 36
Joined: 03 Oct 2013, 13:59
Location: Aarhus, Denmark

Re: Jumping line issue

Post by Kramme »

Thanks both of you, this was very helpful!
User avatar
Matthieu
Site Admin
Posts: 172
Joined: 11 Jan 2021, 13:10

Re: Jumping line issue

Post by Matthieu »

Hironori Takagi wrote: 15 Oct 2024, 01:06 The official answer from TVPaint is to "turn on the subpixel option," but this causes problems with the right-click detection (it doesn't work unless you get the pen very close).
The solution we found in our studio was to "set the top-left monitor as the main display." I have attached it for your reference.

Hello everyone,

Both those problems have been reported to the devs (Subpixel creating right-click issues and the monitor position triggering this odd jumping line behavior).
The aforementioned workarounds can still be useful while those issues are being fixed.
